  • Old Jeep now toy , going to slowly make it more usefull .

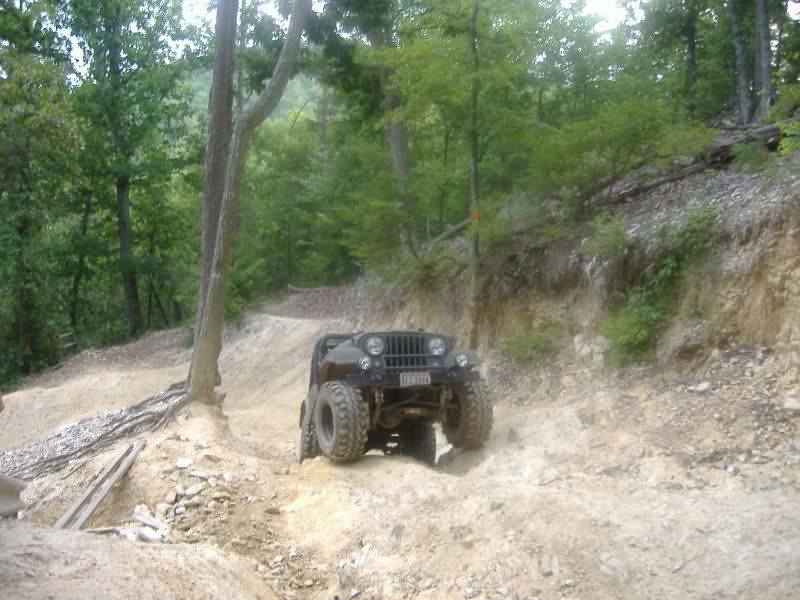

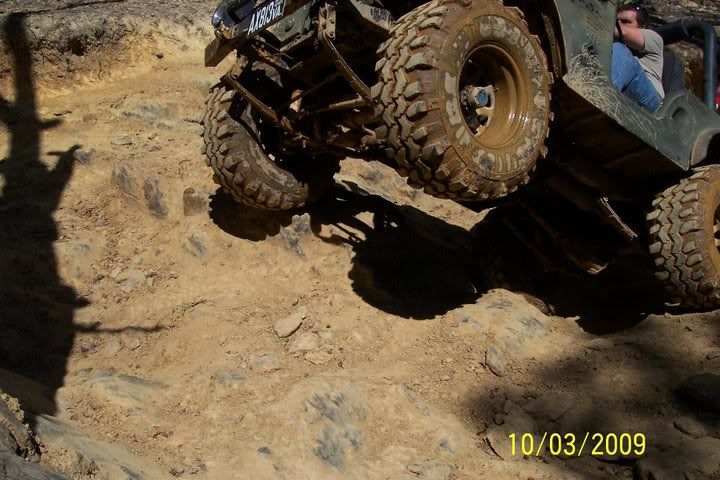

    Ive been rock crawling for the last 7 years now and offroading since I bought my first truck when I was 13 . Heres my toy , a 62cj5 , f134 , t90 3 speed , dana 30 , dana 44 5.38 gearing locked front and back mostly standard fair for older cj5s .

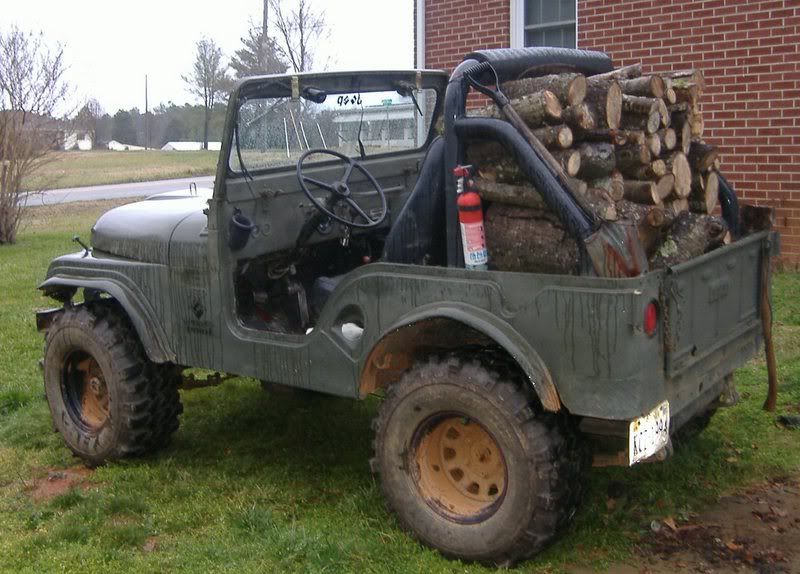

    It does fine on the trail no real complaints about the old girl there . But on the road is a different ball game . The jeep would make a great scout , hunting and wood gathering utility vehicle but its a hand full to go any distance running faster than 35 mph . So whats the plan .

    Im going to pull the tired 4 banger out , drop in a 4.3 chevy v6 TBI , sm420 4 speed , warn over drive , full cage , full float the rear .

    What will I gain , 2 times the ponies under the hood , easy starting and no ill effects of angle with the throttle body , a low first gear of 7 to 1 , a 1.25 overdrive and better road manners .

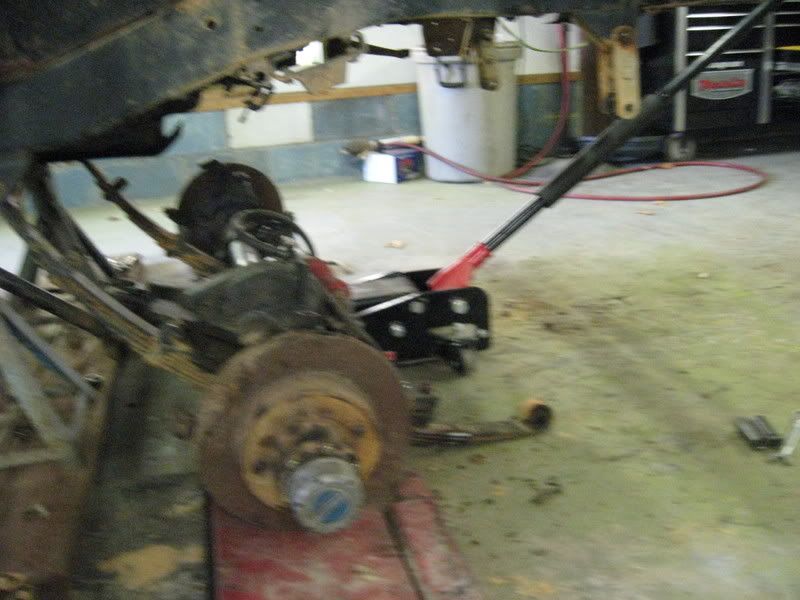

    Ive already have swapped out the steering from ross to saginaw when I swapped out the dana 27 closed nuckle front end with a dana 30 front end which gave me a smaller turning radius and better steering system along with the ability to had power steering when I do the engine swap .

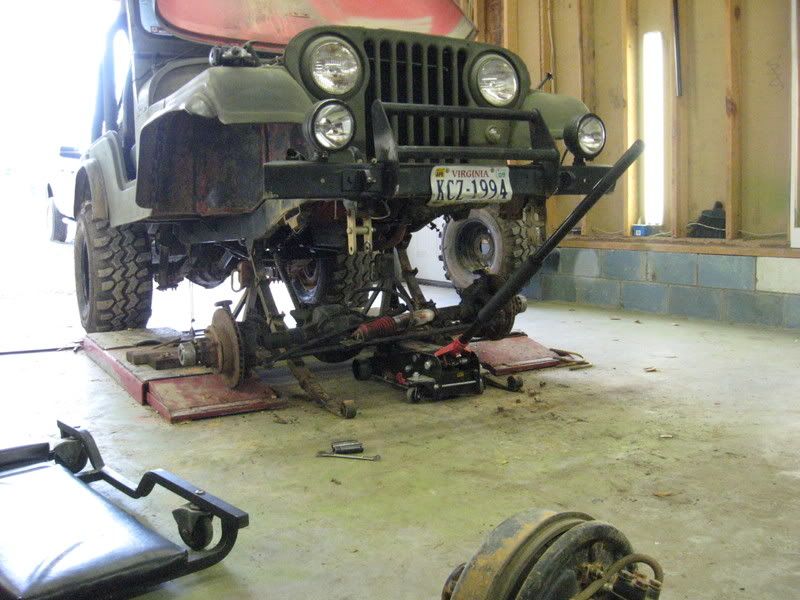

    Front end swap






    Started the wiring for the engine swap , I have the harness built for the engine , relay blocks for the lights and starting on the switch and gauge panels so when I get around to the swap its self Ill have every thing ready .

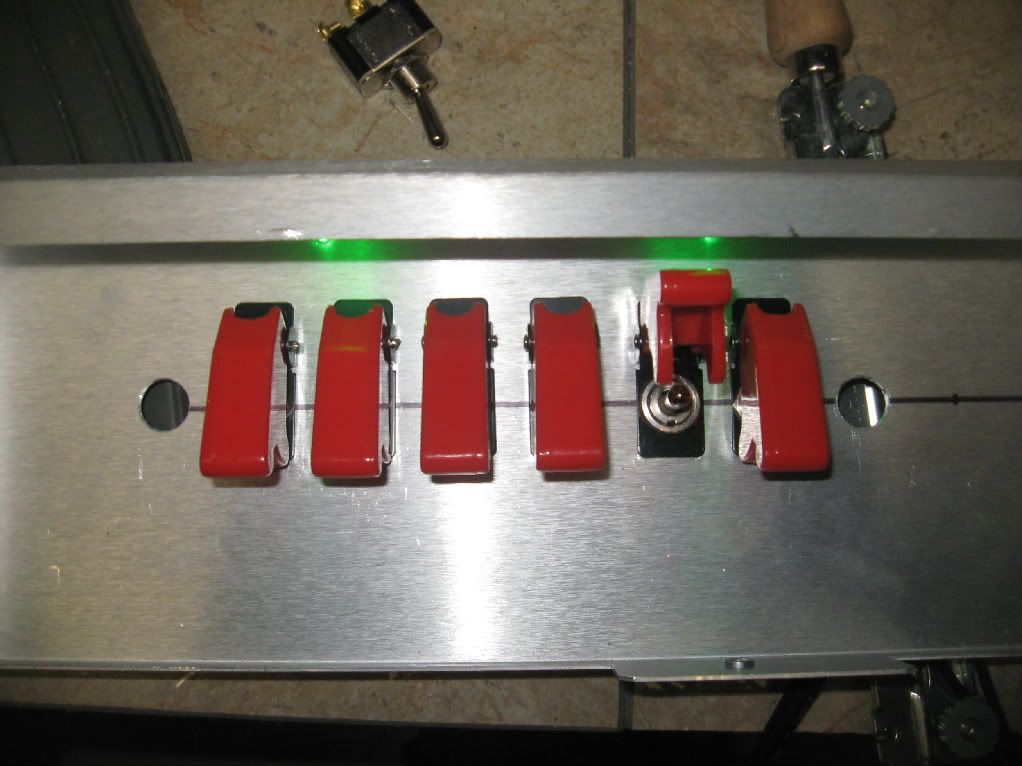

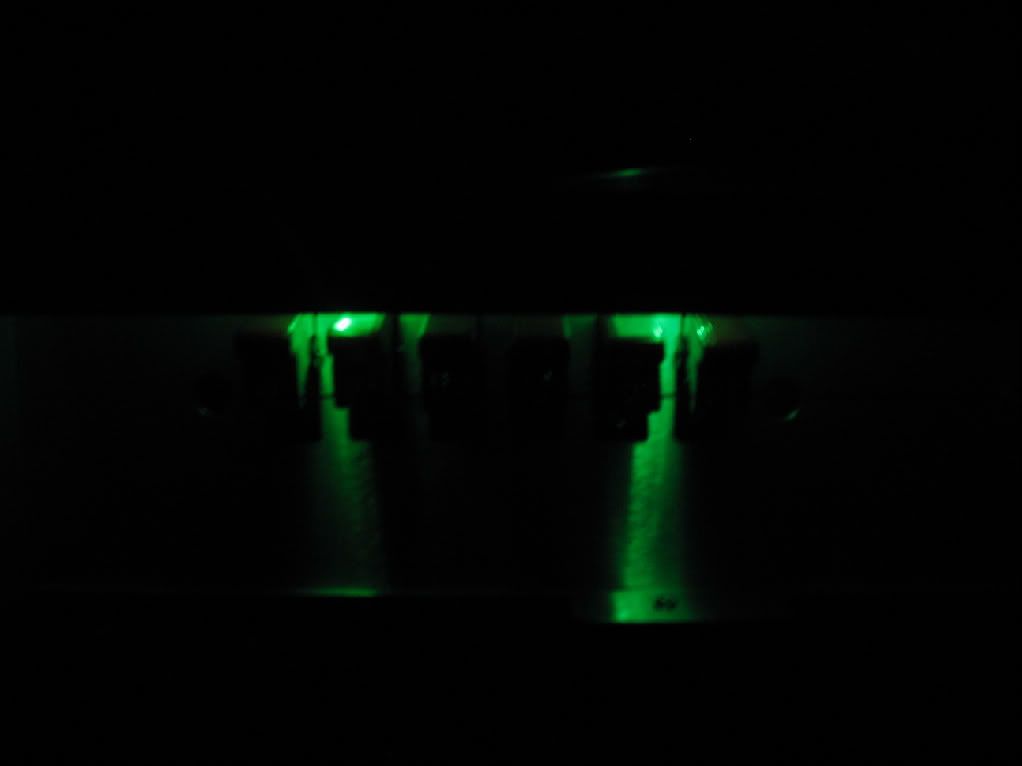

    Switch panel




    Well thats a few notes on it so far.
    Last edited by Hawk_308; 10-20-2011, 12:36 AM.

  • #2
    As a long time Jeep owner (Renegade/Wrangler), I've never been a gear head :-( But it sure is nice to see people keeping those things going.

    I notice in your first few pictures, it doesn't appear you are worried about flipping the Jeep (no harness). Good luck with the changes.
    If Tyranny and Oppression come to this land, it will be in the guise of fighting a foreign enemy.
    ~James Madison

    You will eat your Brocoli and like it, or I'll have to TAX you.
    No more Big Gulps for you either!

    Comment


    • #3
      Nice looking toy you have there!
      Experience is a cruel teacher, gives the exam first and then the lesson.

      Comment


      • #4
        Originally posted by TyrannyUnleashed View Post
        As a long time Jeep owner (Renegade/Wrangler), I've never been a gear head :-( But it sure is nice to see people keeping those things going.

        I notice in your first few pictures, it doesn't appear you are worried about flipping the Jeep (no harness). Good luck with the changes.
        You are right , there is no seat beat at all on the drivers side and the roll bar might help in a lay over but in a end over its not going to help , I built it when I didnt care much for living .On the trail I get called a crazy SOB at lest a couple times a day. When Version 2.0 is done as I call it ,it will have a cage and proper harnesses .

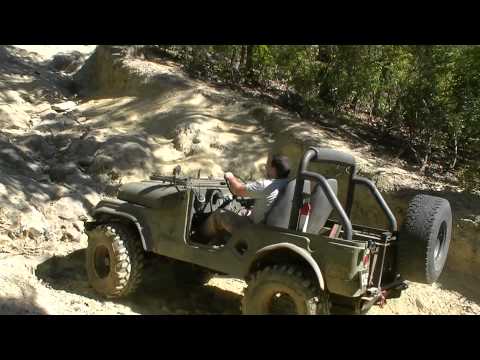

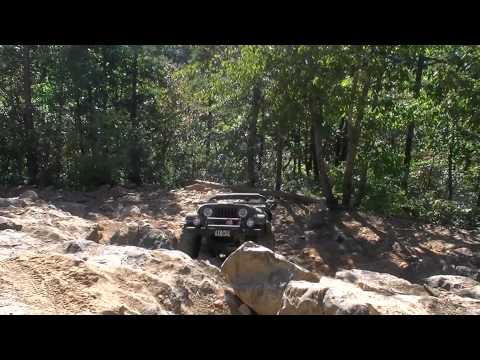

        and why its time for the old F134 to come out , we figure she now down to under 40 hp to the rear . So the tire rubbing the frame makes the difference between it staying running or not . Note the guy saying its retarded at the 15 sec mark , thats because we were there for 2 hours repairing a blazer on the trail there and in that time no one made the line I ran . The first pic in the first post is the side view of this video , neither do the angles proper .

        Last edited by Hawk_308; 10-20-2011, 08:30 AM.
