  • simualting bleeding bag

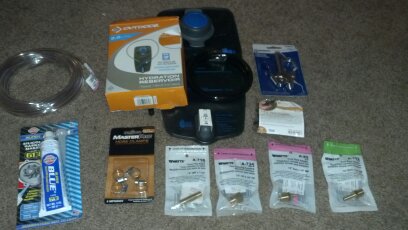

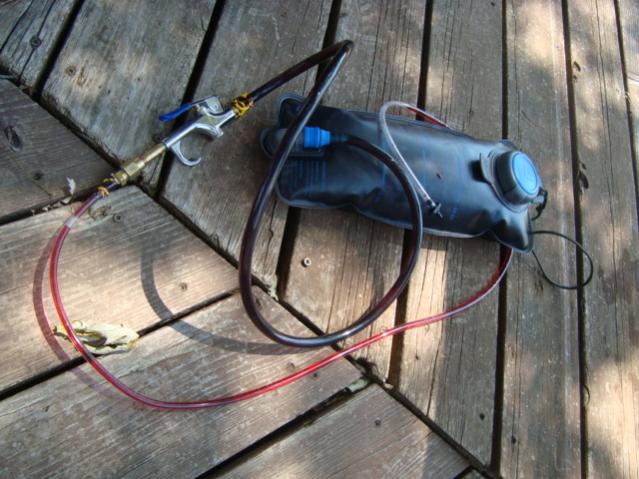

    Ok a few months back our group training went over different types of bleed and worked on how to stop the bleed from minor scrapes to serious life threating artery bleeding. This got me to think on how to simulate artery bleeding with squirtingand all. As you know when trainging your should make it as realistic as possible. So with all this being said, i started to draw up and think of a way to accomplish this. this is a good training tool for when coving medical training imo. This is fairly low cost to build and easy to put together with little tools. this whole thing from start to finish takes about 30 mins to build and cost about $40-50 bucks and is reuseable.

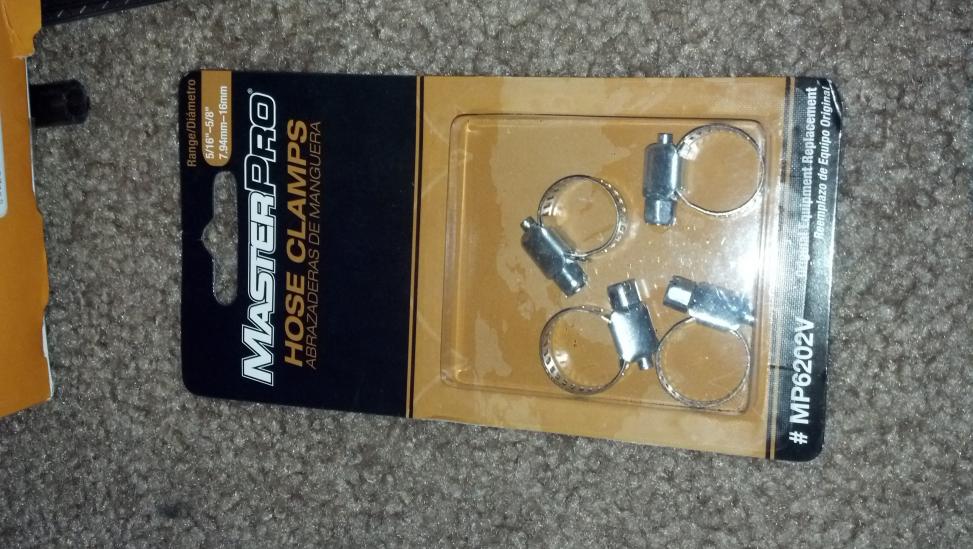

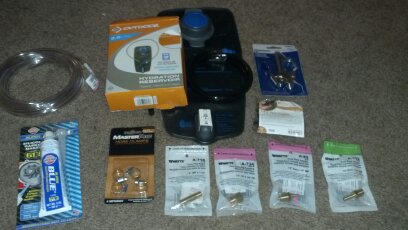

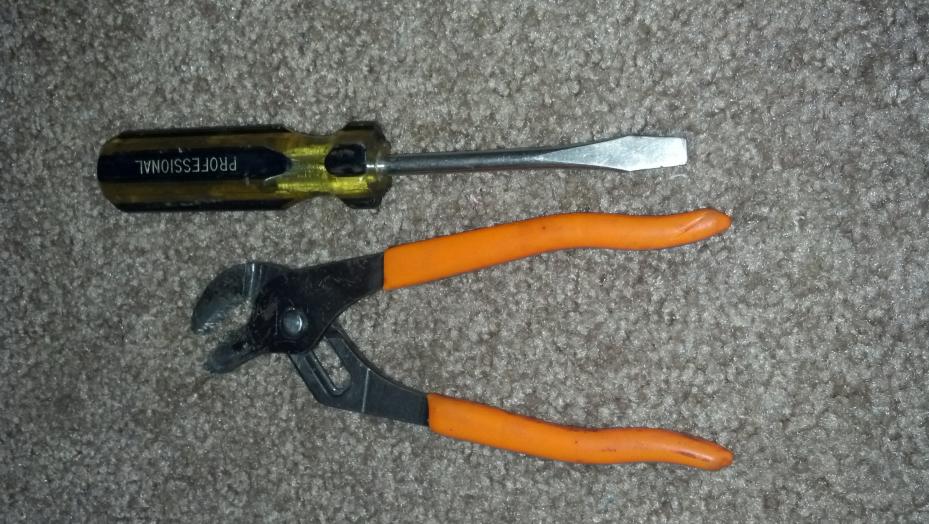

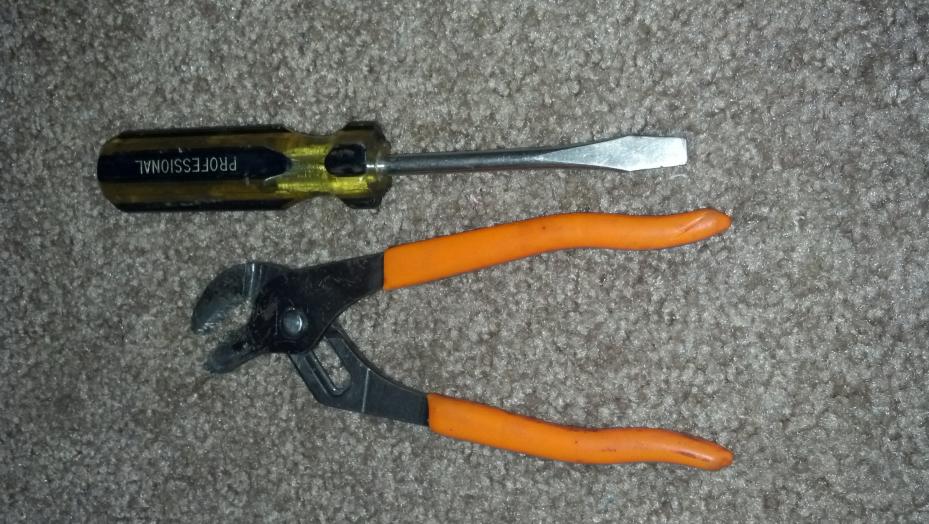

    Click image for larger version

Name:	new phone ics 253.jpg
Views:	1
Size:	30.6 KB
ID:	109355Click image for larger version

Name:	new phone ics 258.jpg
Views:	1
Size:	91.0 KB
ID:	109356Click image for larger version

Name:	new phone ics 270.jpg
Views:	2
Size:	102.4 KB
ID:	109357Click image for larger version

Name:	new phone ics 266.jpg
Views:	1
Size:	99.2 KB
ID:	109358Click image for larger version

Name:	new phone ics 261.jpg
Views:	1
Size:	28.5 KB
ID:	109359
    Whats the point of having and not knowing how to use? You dont have a car and not know how to drive it do you? Having the tools for the job is worthless with out the knowledge of how to use it!

  • #2
    Click image for larger version

Name:	new phone ics 268.jpg
Views:	1
Size:	101.1 KB
ID:	107363Click image for larger version

Name:	new phone ics 260.jpg
Views:	1
Size:	103.7 KB
ID:	107364Click image for larger version

Name:	new phone ics 264.jpg
Views:	1
Size:	100.9 KB
ID:	107365Click image for larger version

Name:	new phone ics 272.jpg
Views:	2
Size:	35.5 KB
ID:	107366
    Whats the point of having and not knowing how to use? You dont have a car and not know how to drive it do you? Having the tools for the job is worthless with out the knowledge of how to use it!

    Comment


    • #3
      Click image for larger version

Name:	new phone ics 272.jpg
Views:	2
Size:	35.5 KB
ID:	107367

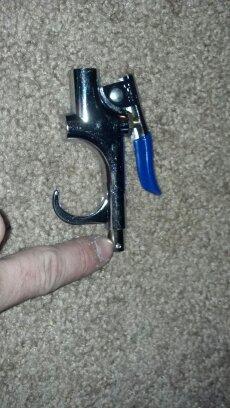

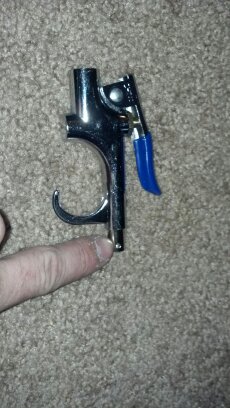

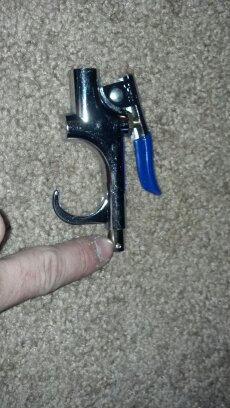

      Ok starting with the air blower you will need to remove the tip of it by unscrewing it.
      Click image for larger version

Name:	new phone ics 274.jpg
Views:	1
Size:	38.9 KB
ID:	107368
      Click image for larger version

Name:	new phone ics 275.jpg
Views:	1
Size:	27.0 KB
ID:	107369

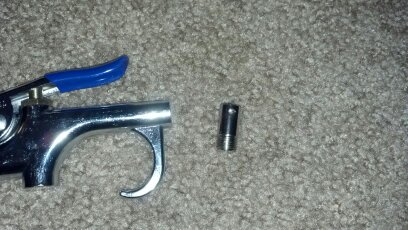

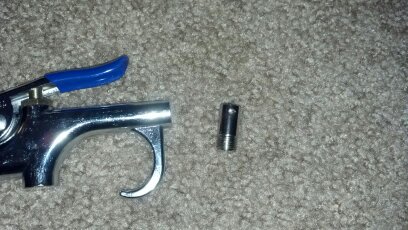

      As you can see in this pic the tip that you just unscrewed has a hole which will leak water through
      Click image for larger version

Name:	new phone ics 279.jpg
Views:	1
Size:	29.4 KB
ID:	107370

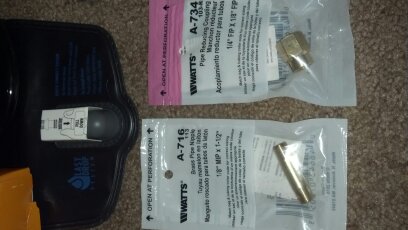

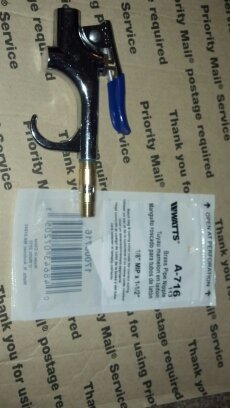

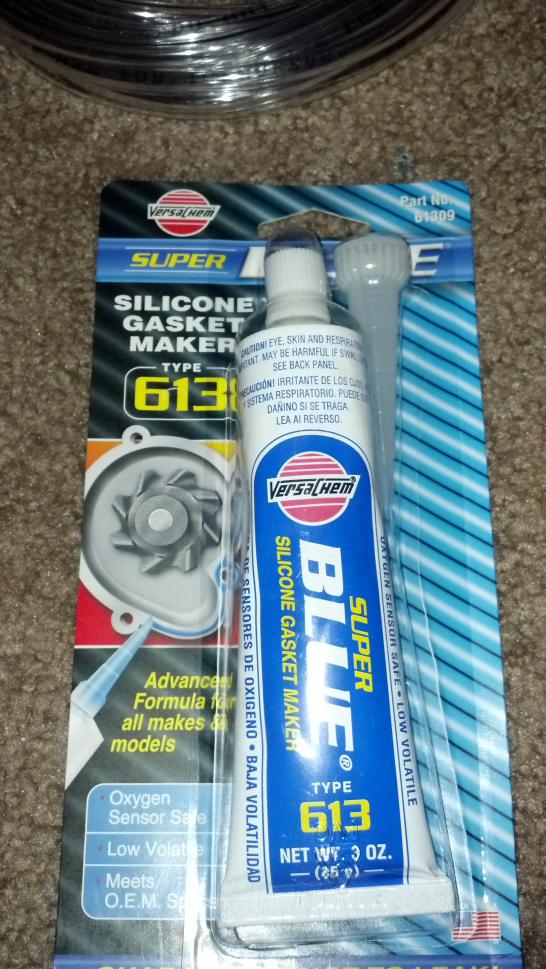

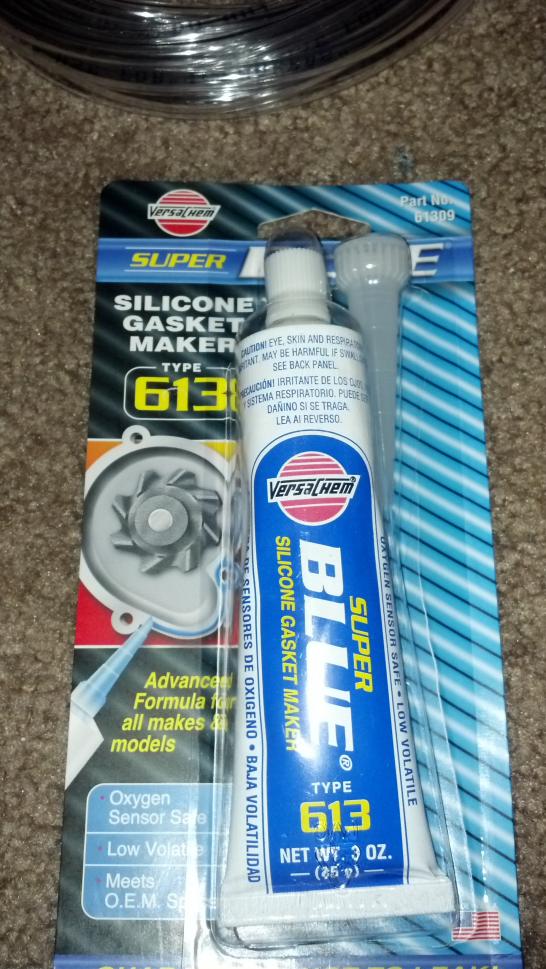

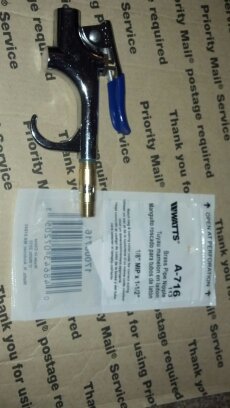

      now using the A716 pipe extender screw it in to the air blowerwith using the gasket material first to seal the threads
      Whats the point of having and not knowing how to use? You dont have a car and not know how to drive it do you? Having the tools for the job is worthless with out the knowledge of how to use it!

      Comment


      • #4
        Click image for larger version

Name:	new phone ics 282.jpg
Views:	1
Size:	93.1 KB
ID:	107371

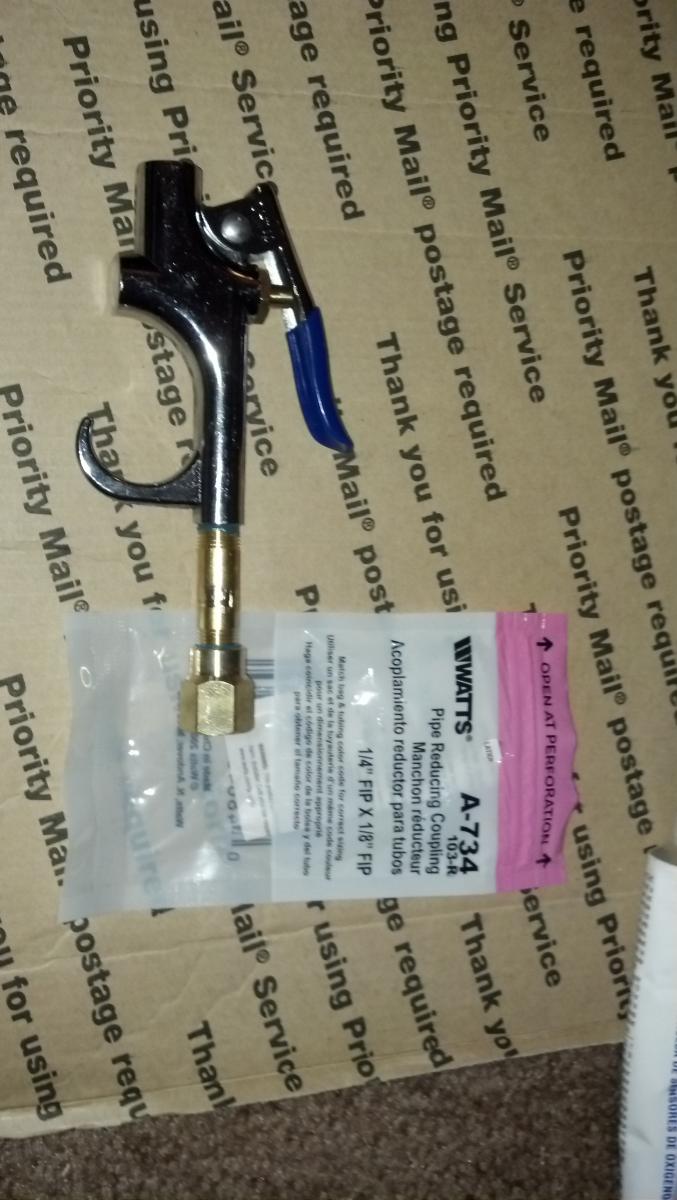

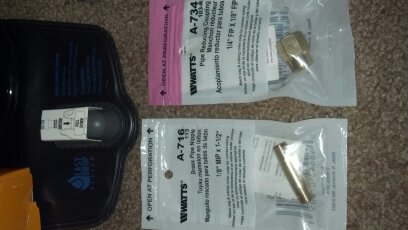

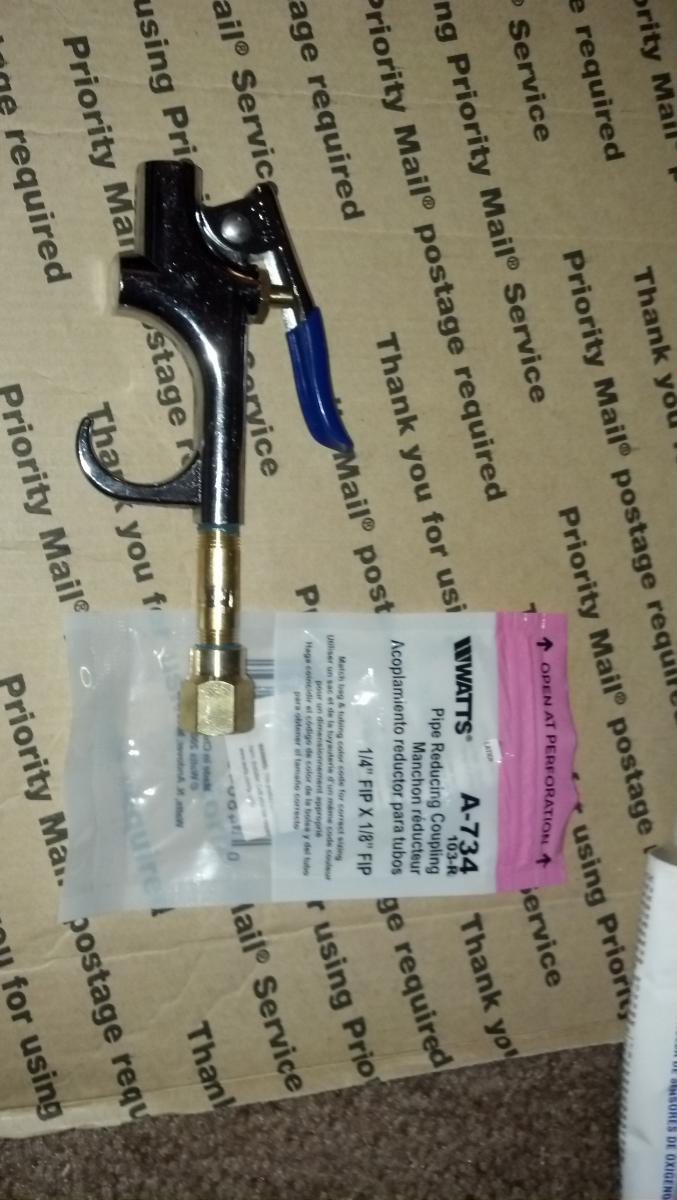

        now use the gasket material on A734 and attach it to the pipe ext A716
        Click image for larger version

Name:	new phone ics 283.jpg
Views:	1
Size:	31.4 KB
ID:	107372

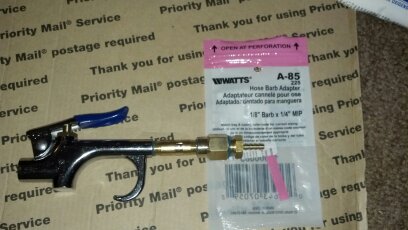

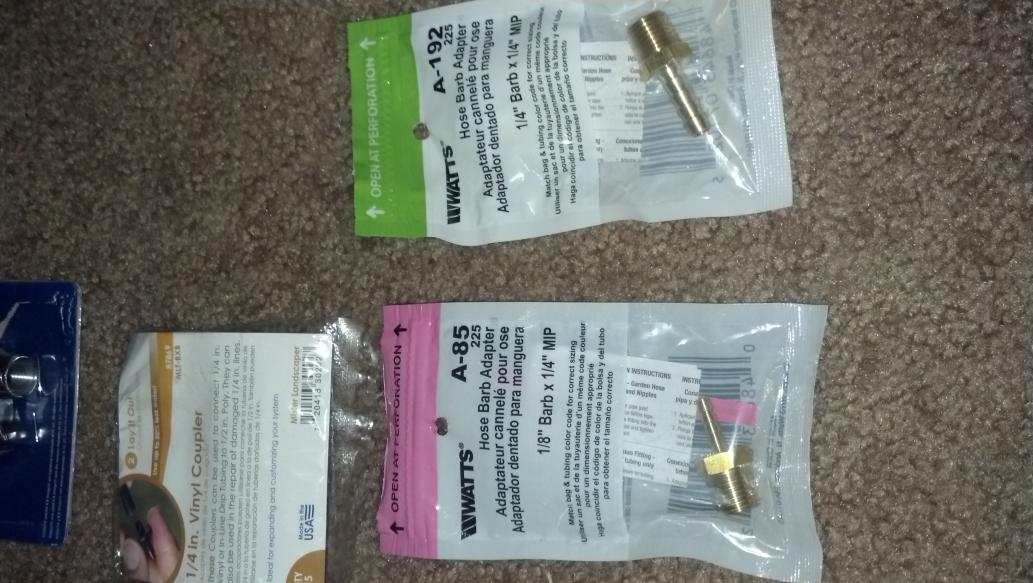

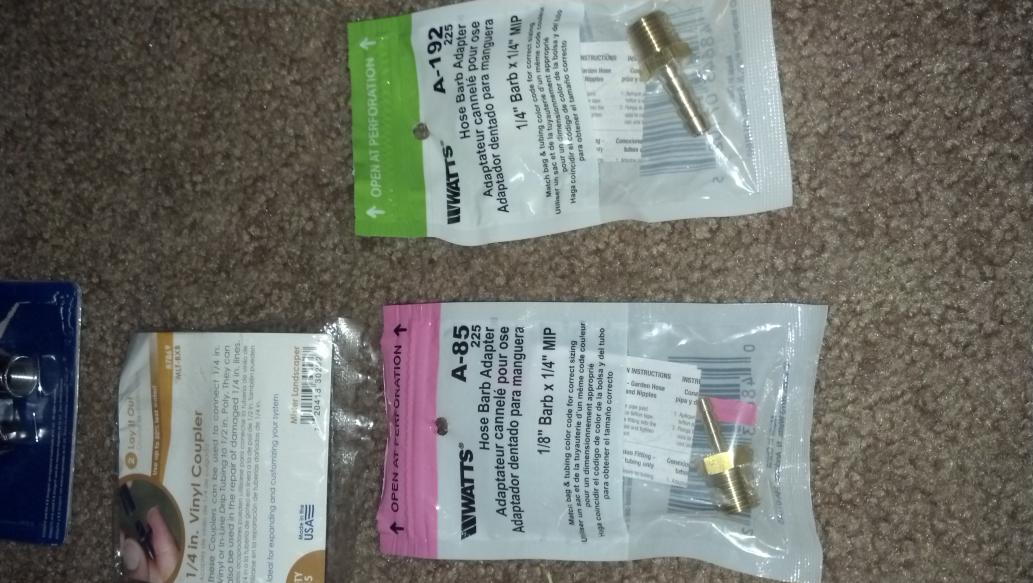

        now use gasket material on A85 and attach to A734
        Click image for larger version

Name:	new phone ics 285.jpg
Views:	1
Size:	34.1 KB
ID:	107373

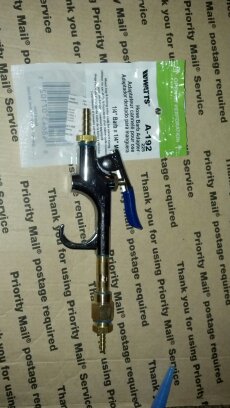

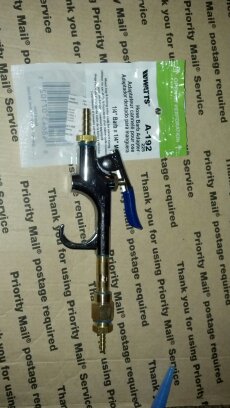

        now use gasket material on A192 and attach it to opposite of the air blower
        Click image for larger version

Name:	new phone ics 277.jpg
Views:	2
Size:	84.1 KB
ID:	107374

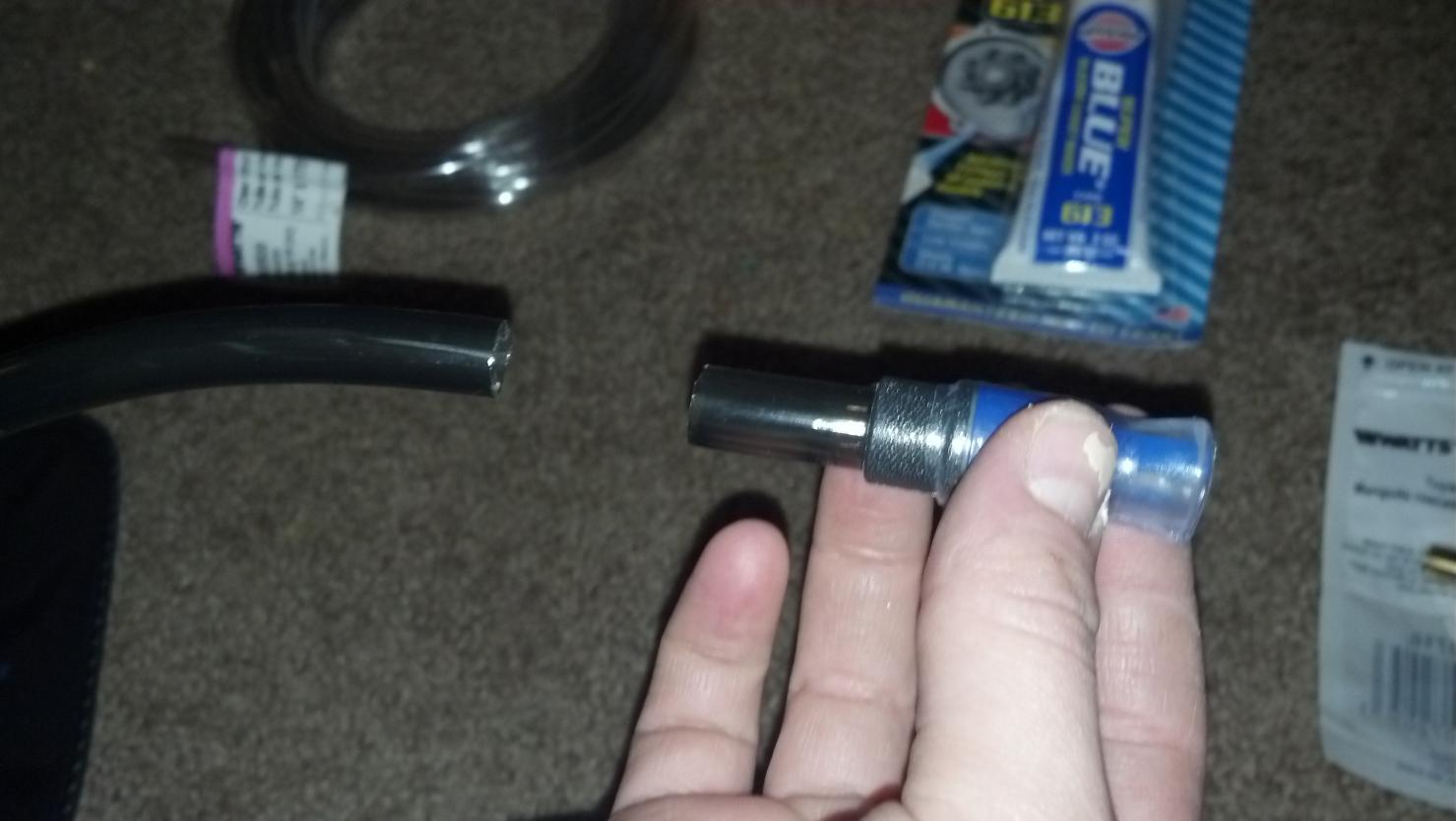

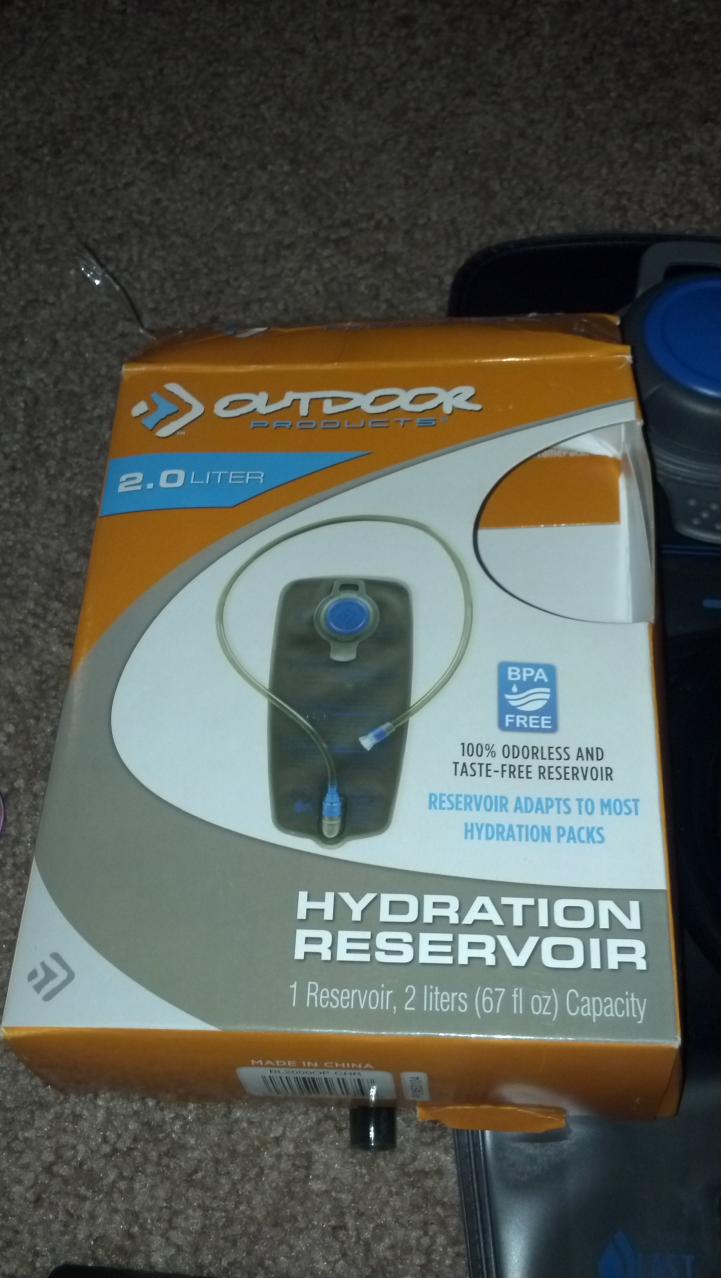

        now you will cut the bite valve off the camelback bag
        Click image for larger version

Name:	new phone ics 287.jpg
Views:	2
Size:	33.1 KB
ID:	107375

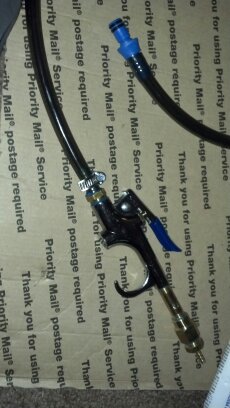

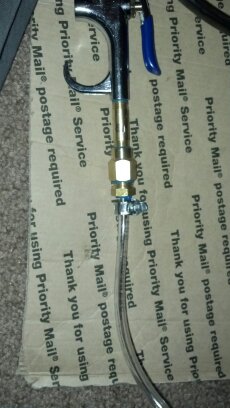

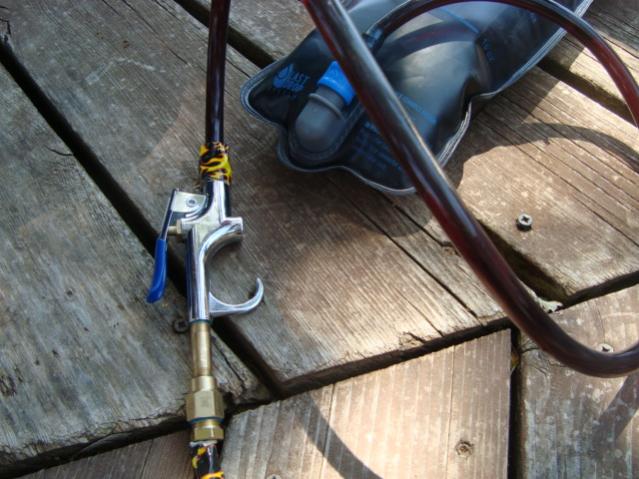

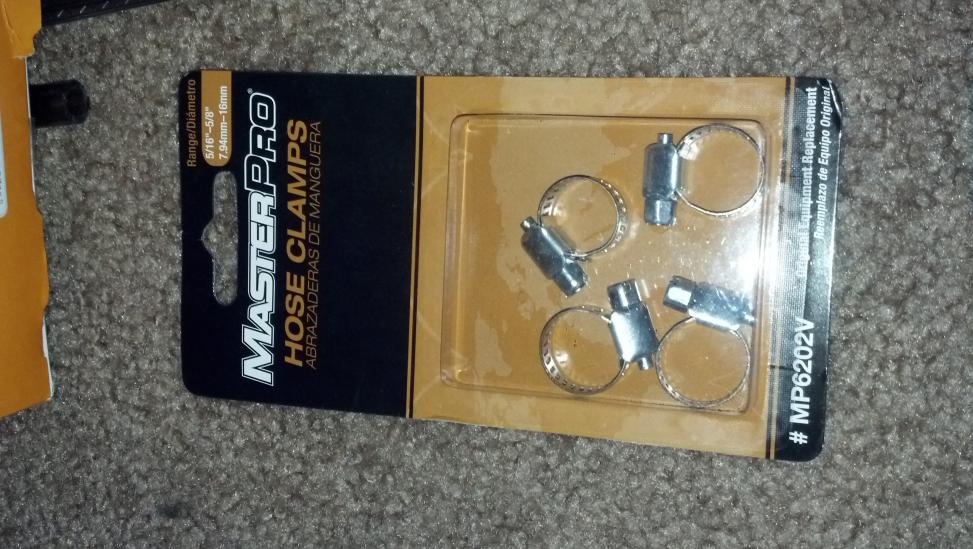

        now using a hose clamp attach the camelback hose where you cut the bite valve off and attach it to A192
        Whats the point of having and not knowing how to use? You dont have a car and not know how to drive it do you? Having the tools for the job is worthless with out the knowledge of how to use it!

        Comment


        • #5
          Click image for larger version

Name:	new phone ics 277.jpg
Views:	2
Size:	84.1 KB
ID:	107379

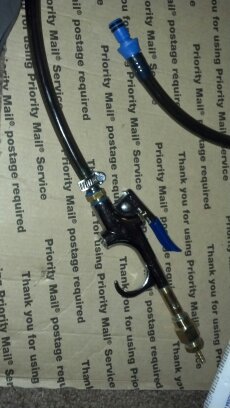

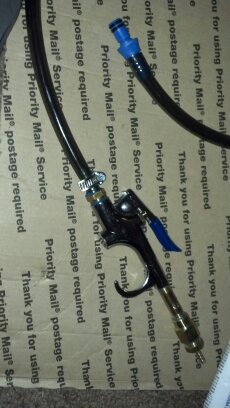

          now cut the bite valve off the camelbak bladder hose and attach it to A192 with hose clamp like below
          Click image for larger version

Name:	new phone ics 287.jpg
Views:	2
Size:	33.1 KB
ID:	107381

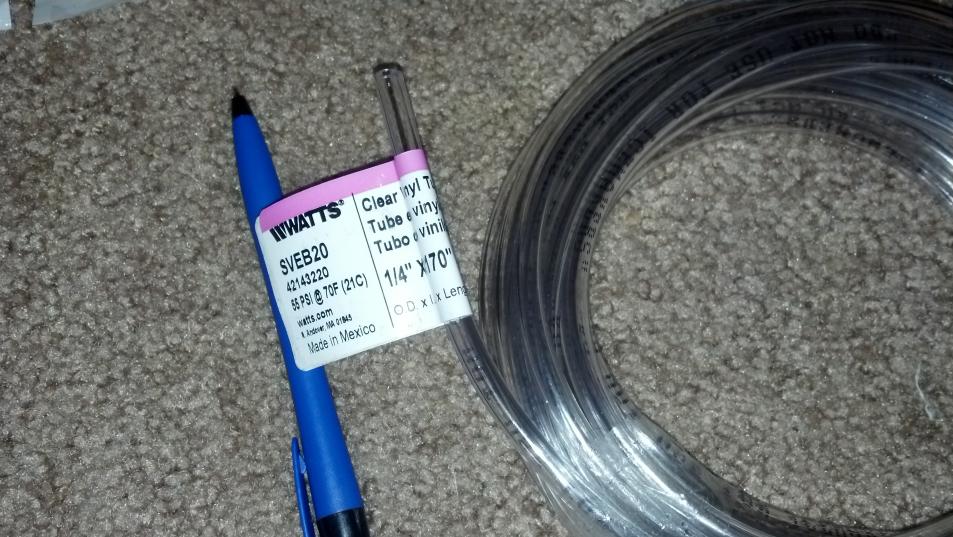

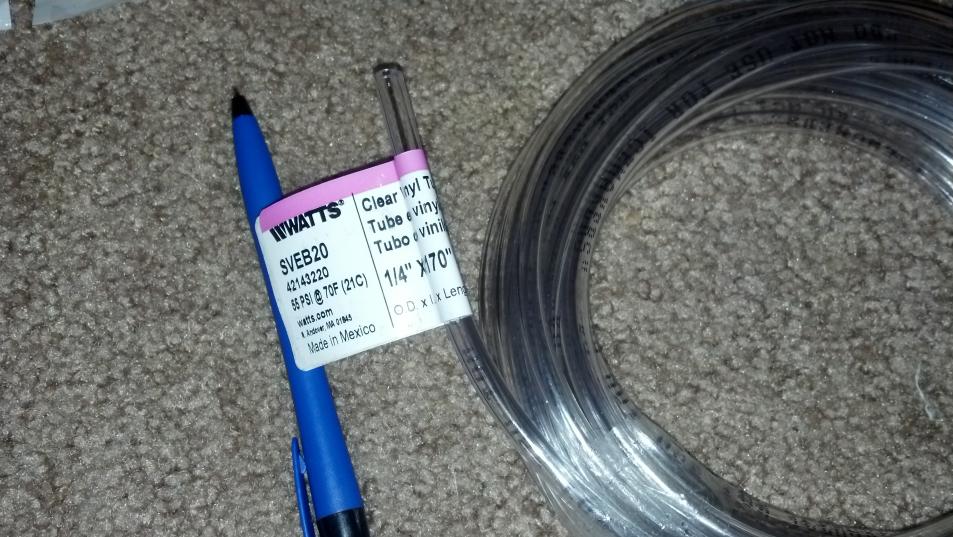

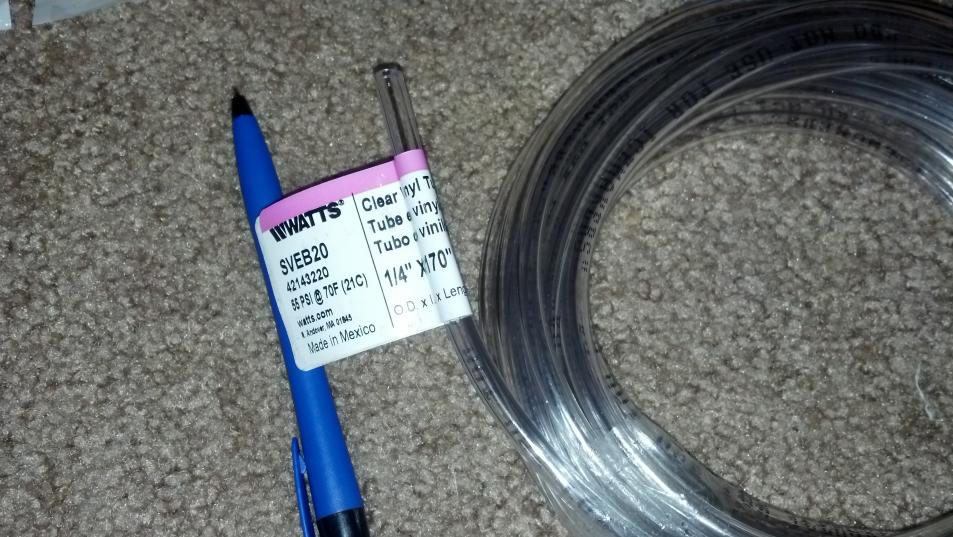

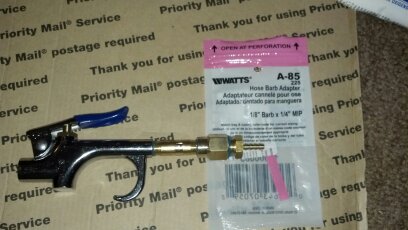

          now at this point take the 1/4in clear hose and attach it to A85 with hose clamp as well
          Click image for larger version

Name:	new phone ics 270.jpg
Views:	2
Size:	102.4 KB
ID:	107383
          Click image for larger version

Name:	new phone ics 289.jpg
Views:	1
Size:	32.0 KB
ID:	107384
          now you can determine how long you want the hose. IMO make from shoulder to ankle long making it useable all over the body if desired.
          Click image for larger version

Name:	new phone ics 291.jpg
Views:	1
Size:	87.2 KB
ID:	107385

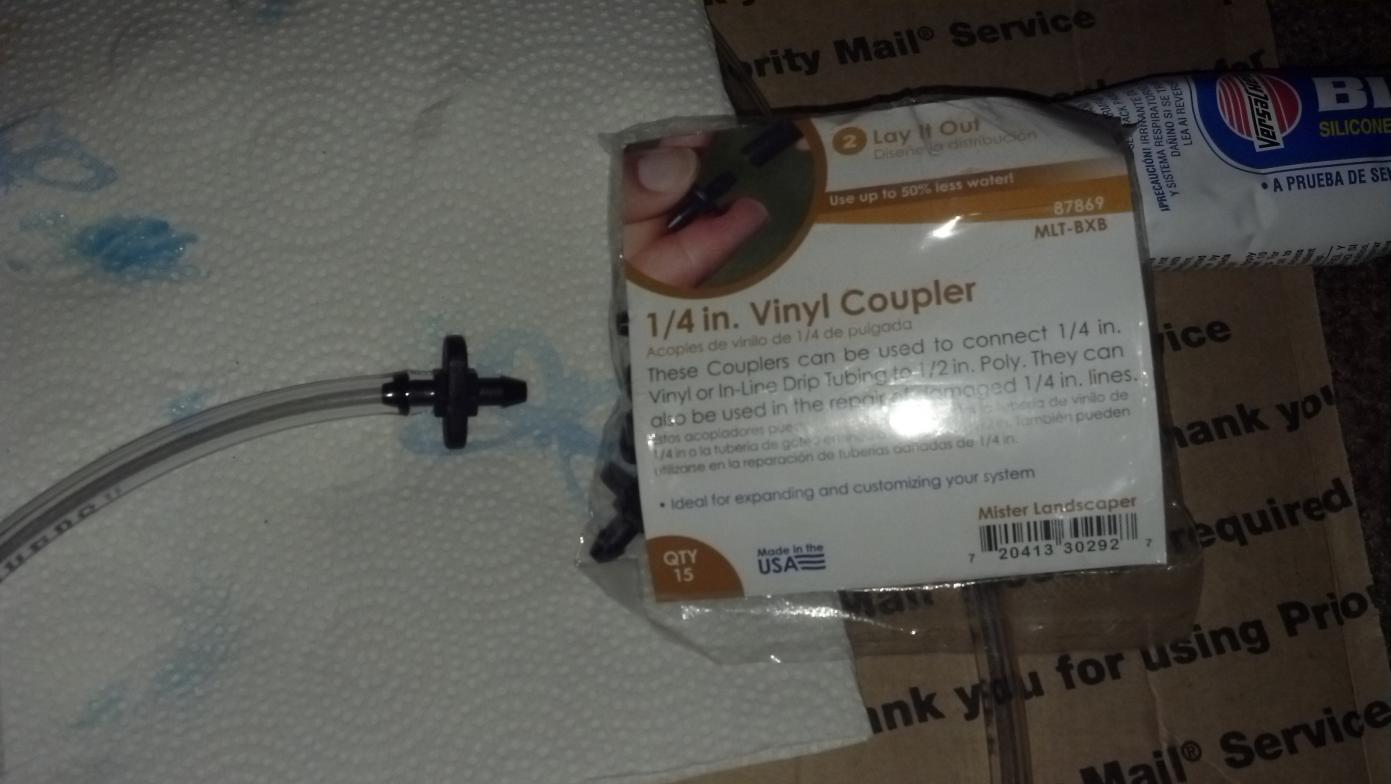

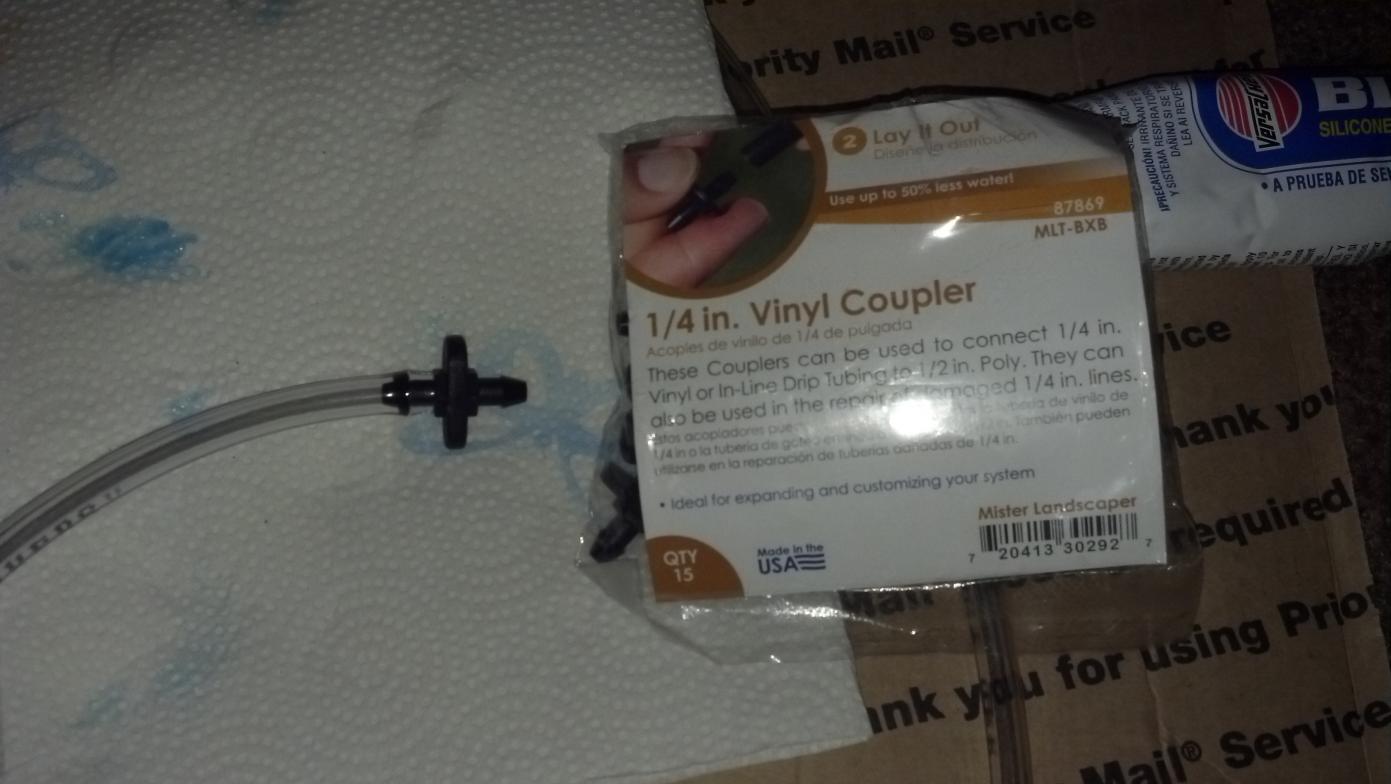

          now take the 1/4in coupling and insert it into the clear 1/4in hose which is very tight not needing any other hose clamps. the coupling gives you a jet stream spray.
          Whats the point of having and not knowing how to use? You dont have a car and not know how to drive it do you? Having the tools for the job is worthless with out the knowledge of how to use it!

          Comment


          • #6

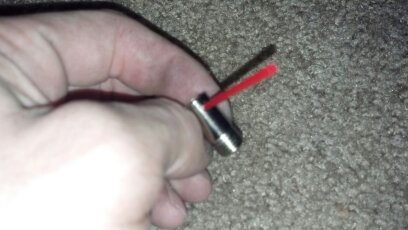

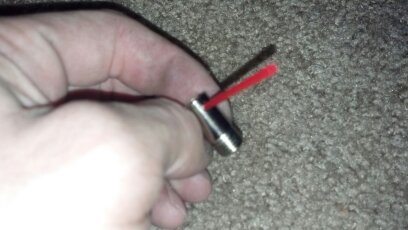

            this short video covers how it works and allows you to see the jet spray. now i addded red food dye to make it look like blood and give it more real effect.


            Last edited by Sharpshooter; 09-29-2012, 07:43 PM.
            Whats the point of having and not knowing how to use? You dont have a car and not know how to drive it do you? Having the tools for the job is worthless with out the knowledge of how to use it!

            Comment


            • #7

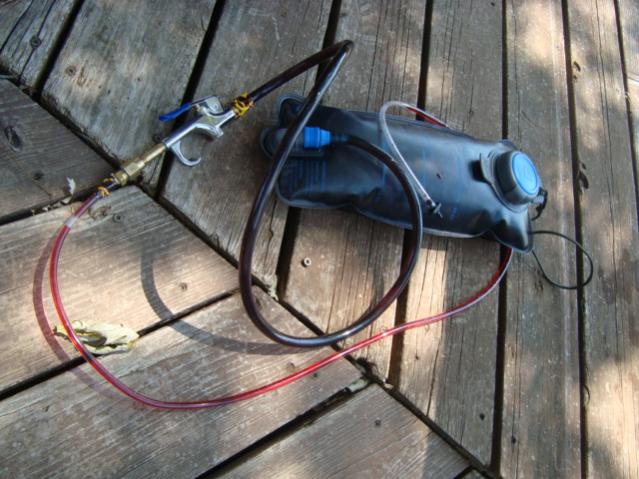

              Here is the test video I shot and some pics. Great job! When that blood shot out it really got the crew moving and the realism went thru the roof!




              Click image for larger version

Name:	DSC04310.jpg
Views:	1
Size:	55.6 KB
ID:	107386 Click image for larger version

Name:	DSC04311.jpg
Views:	1
Size:	53.9 KB
ID:	107387
              Knowledge is Power, Practiced Knowledge is Strength, Tested Knowledge is Confidence

              Comment


              • #8
                Outstanding!
                Experience is a cruel teacher, gives the exam first and then the lesson.

                Comment


                • #9
                  Originally posted by Grand58742 View Post
                  Outstanding!
                  thank you sir wish could been here to see it in action had it hiden under clothes and poked out through my pants and walked right past the group few times and noone noticed till **** was real
                  Whats the point of having and not knowing how to use? You dont have a car and not know how to drive it do you? Having the tools for the job is worthless with out the knowledge of how to use it!

                  Comment


                  • #10
                    Wish I could have been there as well. Life happens...
                    Experience is a cruel teacher, gives the exam first and then the lesson.

                    Comment


                    • #11
                      ya well we will be using it again at some point.
                      Whats the point of having and not knowing how to use? You dont have a car and not know how to drive it do you? Having the tools for the job is worthless with out the knowledge of how to use it!
