Several units currently in stock, what sweet little babies they are!!
8/31/18- a handful of these new units IN STOCK! Order now to avoid long lead time from FLIR!!!
YES!!! FLIR has begun shipping these new units with the 50mm lens 60 Hz and more magnification! Get your order in now!

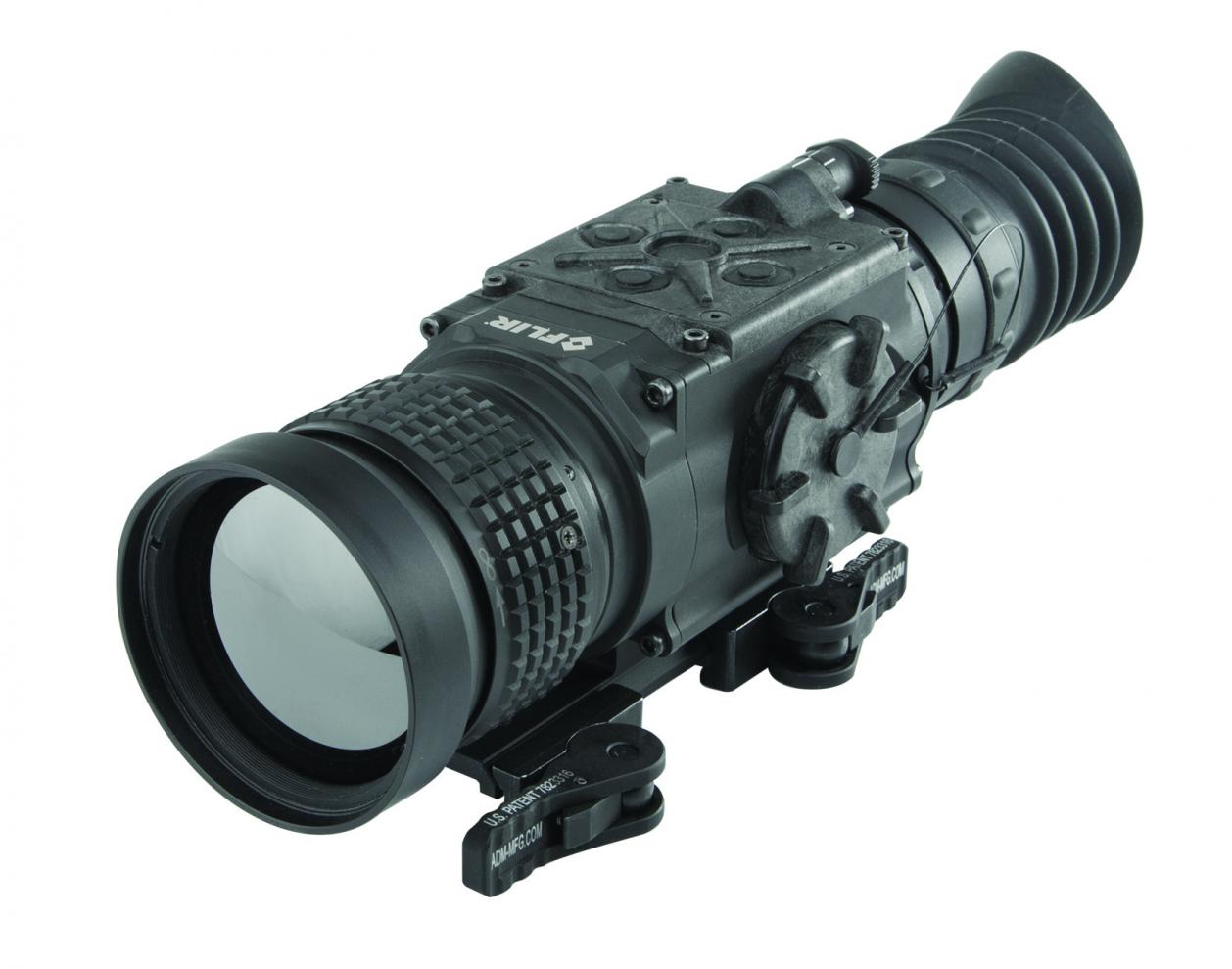

FLIR THERMOSIGHT PRO PTS 536
COMPACT POWERFUL
Perfect balance of size and performance
EXCEPTIONAL VISION
Advanced image processing eliminates the guesswork
PTS536
Detector Type: 320 x 256 VOx Microbolometer
Video Refresh Rate: 60 Hz
Start Up: < 6 seconds
Image Processing: FLIR Proprietary Digital Detail Enhancement™
Lens system: 50 mm F/1.0
Optical magnification: 4×
Field of View (H x V): 4.5° × 35°
Digital Zoom: 2× 4×
Diopter Adjustment Range: -5 to +5 dpt
Focusing Range: 10 m to infinity
Eye Relief: 45 mm
Display: Quad-VGA (1280 x 960) FLCOS
Video Output: Digital Video
Temperature Imaging Modes (Image Palettes):
Outdoor Alert
Artic
Sepia
Ironbow HC
Rainbow
Black Hot
White Hot
Reticle Type:
Dot 4 MOA
Line Dot
Cross Center Dot
Cross Crosshair
“No Reticle”
Reticle Color:
Black
White
Red
Cyan
High Visibility
Boresight Adjustment Type: Digitally Controlled
User Interface:
Operation Switch On/ Off/ Standby Mode
Control Panel Buttons Configures Operational Settings:
Display Brightness Control
Image Palette Control
Digital Zoom Control
Reticle Color Control
Reticle Pattern Control
Boresighting Adjustment
On-Screen Menu Navigation
Diopter Adjustment Ring Adjusts the Eyepiece Diopter
Interfacing: USB-C Connector Digital video out Image and video file access
Power:
Battery Type: Two CR123A 3V Lithium batteries CAN ALSO USE USB POWER PACK
Battery Life (Operating): Up to 4 hours at 20 C°
External Power Through USB-C port (5Vdc)
Environmental
Operating Temperature Range -20°C to +50°C (-4°F to +122°F)
Storage Temperature Range -40°C to +60°C (-40°F to +140°F)
Physical
Weight 0.81 kg (1.78 lbs)
259 x 68 x 84 mm (10.2 x 2.7 x 3.3 in)
Weapon Mount Type:
Picatinny
MIL-STD 1913
Weaver Rails
Height of the Scope Axis above Rail: 42 mm (1.65 in)
Package Includes
Thermal Weapon Sight
Battery Cassette
USB to USB Type C Cable (3’)
Quick Start Guide
Lens Cloth
Hard Case
Like all new FLIR products, these have a lead time which varies from product to product. You will NOT be charged until your order is ready to ship with JRH Enterprises.
