  • Long term water solutions

    A year or so back, my BIL in South Khakilackee who works for a well drilling company was slow on work. He was coming to visit for a while and he was able to convince his company to let him take his work truck over here in return for us buying a well from them. Worked out great for all involved.

    We ended up with a hand pumped deep well setup out of his visit and learned a little bit about wells.

    Most of the "pitcher pumps" you see in hardware stores or in catalogs are designed to pull water from 25 feet or less. These are the small ones about 18 inches tall that you can work with one hand.

    Years ago, we bought a couple of those and a "drill your own well" kit from Lehmans. What a joke! Using a backhoe we dug down about 15 feet and then started pushing the pipe in further to reach a total depth of about 23 feet. We hit water when we were digging. We followed the "instructions" to the latter but were not able to make it work. We filled the pipe with water and primed the pump, that didn't help either.

    Later on another trip up north we stopped in Lehmans. Asked to talk to someone about this product and never got any further than him saying "GEORGIA? That won't work in clay! HAHAHAHAHAHA!" To wit I asked him why the hell didn't they tell me that when I purchased it? To wit Festus sat with a stupid look on his face. :mad:

    Anywhoo, this one DOES work. Not sure how much of a "deal" we got on it via "family prices" or not but it was around $3,600. with a 250 foot well into the aquifier and the pump installed. A chunk of change, without a doubt but worth it IMO.

    Water has always been our most fragile system in our infrastructure. While this won't do much for our day to day normal operation, it could be our sole source of water in a worst case EMP/TEOTWAWKI type deal. The genset will run the other deep well and storage tanks will give us some pressure and that's how we "roll" normally ;) But this requires some power- genset. And while you can have logistics planned and squared away for that, stuff does happen.

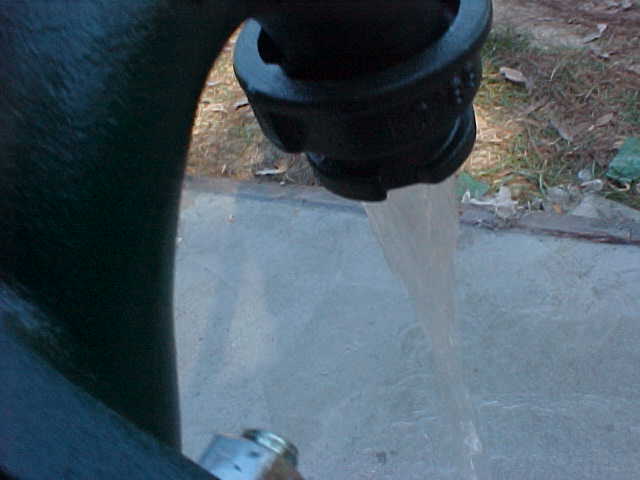

    This pump doesn't seem like it puts out a lot and even my BIL said "I don't think it's putting out enough." But I went and got a 5 gallon bucket and really started working it.

    Let me tell you what- you want a workout, try to fill a 5 gallon bucket with this as fast as you can. With my son timing me I got a 5 gallon bucket out in 1 minute 35 seconds. It didn't kill me, but my breath and pulse rate was definitely up by the end of it. In contrast our normal irrigation system fills a 5 gallon bucket only about 20 seconds faster (with sprinklers going).

    I don't know if it will be able to be seen in the pics, but my BIL showed me a hole drilled in the huge bar that goes up and down as you pump- "this is for attaching to a windmill" he said. Cool! Never knew you could do that.

    That would definitely be the way to go, and he said he has installed similar setups with windmills for cattle ranchers to fill water tanks in the field for their cows.

    The pump itself is tough as nails, stands well over 4 foot tall and weighs a good bit. I was told that their is one part below the pump that can break but in 10 years of well and pump work, he's never seen one break, not even the regular use ones.

    This would be the perfect thing for folks trying to foster a "community" type approach (no that isn't my plan) to survival, provided you could provide security for it. I'm NOT advising that, but I say that for the "I will survive with my subdivision" types. You want to REALLY have a chance to make that plan work? Spend the $4K and do something REAL for your "community." Better chance of people gathering together and defending something like that, versus defending their falling apart McMansions and non working plasma TV's. :)

    Dare I say for the price of a quality night vision unit ;) you might be able to put one of these in and always be assured of quality water. Course you need the night vision to help defend it also :)

    Lowdown3
    Attached Files
    www.homesteadingandsurvival.com

    www.survivalreportpodcast.com

    "Don't be too proud of this technological terror you've constructed..."

  • #2
    Originally posted by Lowdown3 View Post
    Spend the $4K and do something REAL for your "community." Better chance of people gathering together and defending something like that, versus defending their falling apart McMansions and non working plasma TV's. :) Lowdown3
    OMG...no doubt! LOL

    I must humbly admit. I not only envy your pump an set up but I also envy hitting water at just 23'!

    I'm in southern california. You're lucky if you hit water at 175 feet and the recommend digging as far as 300 feet for bad droubts. bleh

    Comment


    • #3
      That's awesome! A well is my primary as well, with redundant power, but I don't have a manual one yet... Money well spent! And now you can start reading about windmills... LOL!

      One thing I learned after over a decade in municipal water treatment... WORK your equipment and valves at least ONCE a month, every week if possible. Keeps seals pliable and rust from grabbing a hold of moving parts.

      I'm coming to your place if my well goes teets up... haha! Get used to that one...

      Rmpl
      -=> Rmplstlskn <=-

      Comment


      • #4
        Lowdown3,
        I currently have a drilled 235 foot well (water table at 19 feet) with a submersible pump and want to add a manual hand pump.

        Is there a name on the pump you purchased. I am looking for a good one. Any advice would be appreciated.
        "It wasn't raining when Noah built the Ark"

        Comment


        • #5
          Originally posted by Rmplstlskn View Post
          One thing I learned after over a decade in municipal water treatment... WORK your equipment and valves at least ONCE a month, every week if possible. Keeps seals pliable and rust from grabbing a hold of moving parts.
          Ohhhh, good advice. Wasn't aware of that and it seems completely understandable.

          Comment


          • #6
            Originally posted by Erg View Post
            OMG...no doubt! LOL

            I must humbly admit. I not only envy your pump an set up but I also envy hitting water at just 23'!

            I'm in southern california. You're lucky if you hit water at 175 feet and the recommend digging as far as 300 feet for bad droubts. bleh
            That was the "drill your own well" kit from Lehman's that didn't work. This well in the pics is over 200'
            www.homesteadingandsurvival.com

            www.survivalreportpodcast.com

            "Don't be too proud of this technological terror you've constructed..."

            Comment


            • #7
              OIC. Makes sense. 10-4

              <blushes>

              Comment


              • #8
                Originally posted by Lowdown3 View Post
                I don't know if it will be able to be seen in the pics, but my BIL showed me a hole drilled in the huge bar that goes up and down as you pump- "this is for attaching to a windmill" he said. Cool! Never knew you could do that.

                That would definitely be the way to go, and he said he has installed similar setups with windmills for cattle ranchers to fill water tanks in the field for their cows.

                Lowdown3
                You could also (with some research, engineering and motivation) rig a variety of human/livestock/pet powered mechanical devices. It may be a bit of a challenge calculating the pulley/wheel/gear ratios to the mechanical advantage needed (depending up the power source...i.e: a mule -vs- a medium to large dog), but the benefits could be great.

                Comment


                • #9
                  Good idea, thanks! I keep telling all the dogs in my "wolf pack" that I have to find them jobs ;)
                  www.homesteadingandsurvival.com

                  www.survivalreportpodcast.com

                  "Don't be too proud of this technological terror you've constructed..."

                  Comment


                  • #10
                    One of the many good things about GA is plenty of water. It filters down through limestone and sits on top of big quartz rocks. It's cold and tastes great. I'm glad you said something about the pump not working in clay however as I own a couple of acres of it. I was thinking of a shallow sand well for my garden (if I ever get to plant it this year). Good info.

                    Comment


                    • #11
                      Bill- might have just been something we were doing wrong also, I really don't know on the "drill your own" kit deal. We dug down with a backhoe as far as we could and then drove the remaining difference. We followed all the instructions. Dunno.
                      www.homesteadingandsurvival.com

                      www.survivalreportpodcast.com

                      "Don't be too proud of this technological terror you've constructed..."

                      Comment


                      • #12
                        Water is the weak point for us. We live in the country with a well and septic setup. Our well is 225 feet deep and has a 220 volt pump, the well guy showed me how to "switch" it to 110 using a homemade pig tail so I could run it off a generator in case of a power outage.
                        My goal is to have some kind of solar backup instead of a generator. I didn't know there was a hand pump capable of pulling that deep. Sounds like I'd get pretty worn out watering our dogs, chickens and horses, though.
                        I'm an old soldier and don't really need elecricity to live, but we can't do without water.
                        "There is nothing so exhilarating as to be shot at without result." Winston Churchill
                        Member: Veterans of Foreign Wars, Vietnam Veterans of America, American Legion, AMVETS, Society of the Fifth Infantry Division

                        Comment


                        • #13
                          Rice paddy, I have the same problem. My well is 265 - 270 feet. I understand that hand pumping is not possible with that depth. Let me know how you solve it.

                          Comment


                          • #14
                            We are pulling water from about 200' with this one. Problem is that it's a dedicated hand pump only well. We could pull the head and drop pipe, etc. and put a standard submersible pump in there, but it's not much of a DIY'er type project at least for me.... LOL
                            www.homesteadingandsurvival.com

                            www.survivalreportpodcast.com

                            "Don't be too proud of this technological terror you've constructed..."

                            Comment


                            • #15
                              Need some feedback...

                              My next venture at the retreat is getting water up the 275' to the top of the mountain/hill from where our water shed is located. Since we are planning for a grid down scenario, the 220 volt pump could be used with a big generator. But not for long. My thoughts (and no testing) on this are as follows. What about using those 55 gallon water barrels setup at different stages heading up to the retreat, and at each stage have a pond style pump pulling small amounts of water up the hill to the each stage. Something like this... "smartpond 30 - 45 GPH Water Garden Fountain Pump " available at Lowes. At the top of the hill, have large cistern 500 gal setup on a raised tower (maybe 8 ft using telephone poles) like a miniature water tower. Fill all the containers at the stages using the generator, and then have solar trickle chargers and batteries housed in deer feeder kits to power the little pumps. Use the small 3/8" hoses to pull water so it is always in a constant state of filling up the water supply. My friends wife has had one of these pumps running submerged for 2 years in her little rock garden and it hasn't failed yet. Then just buy a bunch of spare part for all. So what do you guys think. What would be the show stopping roadblock with this plan?

                              Comment
